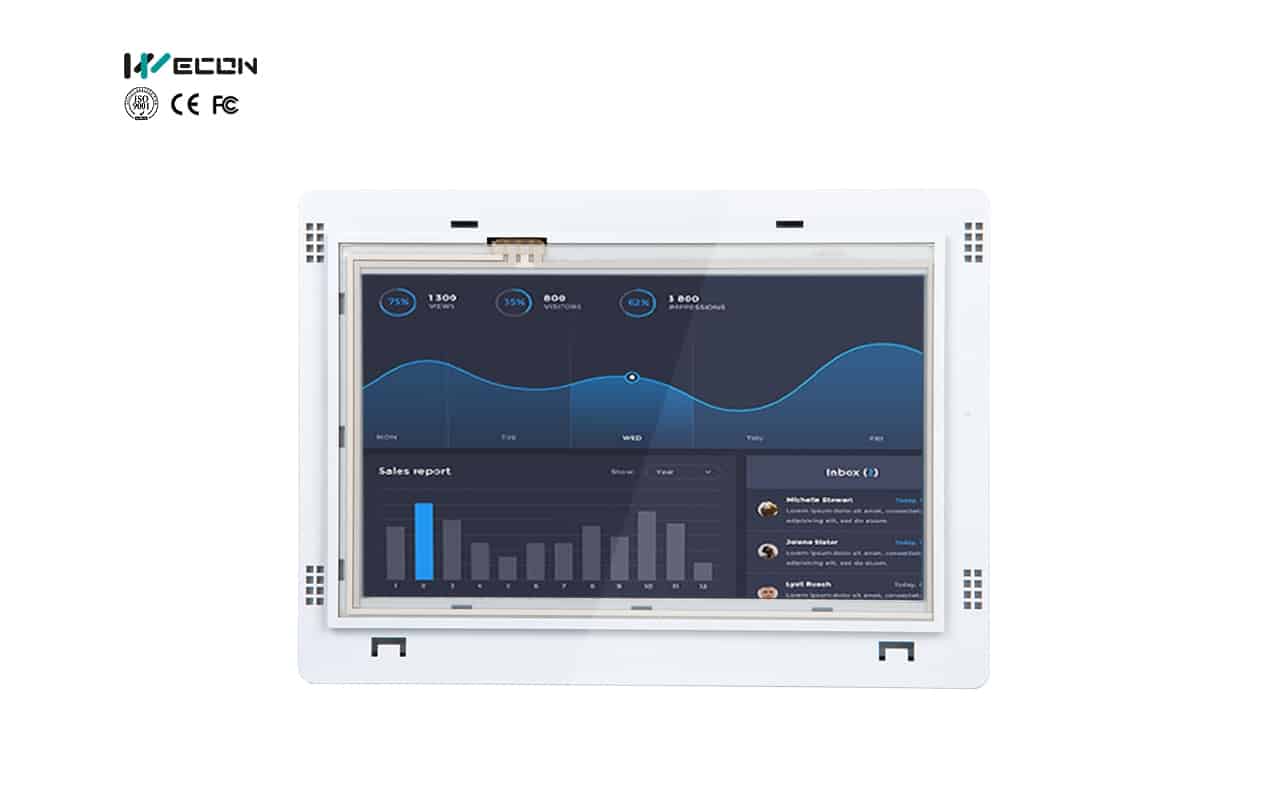

| Model | PI3070i-SL-N | ||||
| General | Screen Size | 7 Inch | |||
| Resolution | 800*480 | ||||
| Colors | 16,000K colors | ||||
| Brightness | 250cd/m2 | ||||
| Backlight Type | LED | ||||
| Touch Screen | High procision four-wire resistive | ||||
| Backlight Life
Time |
50,000 hours | ||||
| CPU | Cortex A7 528MHz | ||||
| Storage | 128M FLASH + 128M DDRAM | ||||
| USB Port | USB host + USB Client | ||||
| Ethernet | YES | ||||
| COM | COM1 | RS422/RS485 | |||
| COM2 | RS232 | ||||
| Power | Power | <8w | |||
| Power Supply | DC 24V ( 12~28V DC ) | ||||
| Dimension | Shell | PC+ABS | |||
| Dimension (mm) | 191.2W*137.2H*41.0D | ||||
| Mounting size (mm) | 172.0W*110.0H | ||||
| Net/Gross (KG) | 0.52/0.74 | ||||
| Operate Environment | Temperature | Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃ | |||
| Humidity | 10-85%RH (Non-condensing) | ||||
| Seismic Resistance | IEC61131-2 standard
Continuous vibration occasion: 10Hz~57Hz 0.075mm, 57Hz~150Hz 9.8m/s2 Discontinuous vibration: 10Hz~57Hz 0.035mm, 57Hz~150Hz 4.9m/s2 X, Y, Z in 10 directions each (80 minutes) |
||||
| Cooling | Air cooling | ||||
